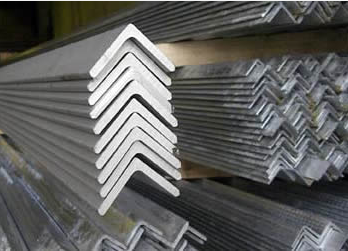

ASTM A36 Hot-dip galvanized steel angle bar for corrosive environments

ASTM A36 Hot-dip galvanized steel angle bar with galvanization coat can keep ASTM A36 Hot-dip galvanized steel angle bar from corrosion when being exposed to the out door, especially for corrosive environments. ASTM A36 Hot-dip galvanized steel angle bar is low-cost material when compared with HSLA steel.

what’s more, the mount of galvanization can be designated as your demand. ASTM A36 Hot-dip galvanized steel angle bar covers ASTM A36 Hot-dip galvanized equal angle bar and ASTM A36 Hot-dip galvanized unequal angle bar according to the depth of legs, Unequal angle steels or L-shaped steels as well as equal angle steels are necessary components for building communication tower, power tower, workshops, steel structure buildings and other engineering projects. And the sizes comes as following:

A36 Hot-dip galvanized equal angle bar sizes:
Size: 20 × 20 mm to 200 × 200 mm.
Thickness: 3 to 20 mm.
Length: 6 m, 9 m, 12 m or per your request.

A36 Hot-dip galvanized unequal angle bar sizes:
Size: 30 × 20 to 250 × 90.
Thickness:3 to 10 mm.
Length: 6 m, 9 m, 12 m or per your request.

ASTM A36 Hot-dip galvanized steel angle bar chemical compositions:
Carbon     max 0.26%
Manganese      --
Silicon       max0.40%
Sulphur     max 0.05%
Phosphorous    max 0.04%

ASTM A36 Hot-dip galvanized steel angle bar mechanical properties:
Tensile (UTS): 400-500 N/mm²
Yield: 250 N/mm²
Elongation in 8 in. [200 mm]:  min 20%
Elongation in 2 in. [50 mm]: min 21%

ASTM A36 Hot-dip galvanized steel angle bar is the most widely used structural steel by the construction industry as its very economical cost. Structural mild ASTM A36 Hot-dip galvanized steel angle bars are manufactured by rolling pre-heated blooms into an angle shape. Commonly the angle beam shows 90 degree; other degrees will be available on your order. All our metal angles are produced under strict quality controls to make sure that their conformity to ASTM A36 specification.

ASTM A36 Hot-dip galvanized steel angle bar own good weldability, great formality and wonderful machine ability. As a result, ASTM A36 Hot-dip galvanized steel angle bar was broadly applied to major industries and many big key projects. Besides, angle iron could be found in our everyday life like industrial shelve, classical coffee table and so on.
